The SCS Jablonec company is an exclusive representative of products German company NÜGA Galvanotechni-sche Elektrowärme GmbH on the Czech and Slovak markets.

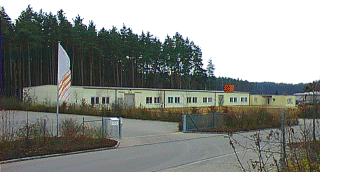

The NÜGA Company with the place of busines in Geor-gensgmünd supplies its products to significant German and European companies. The most important range of goods includes bath heaters, temperature sensors, dry heat protection, level electrodes, combined sensors, swi-tch boxes. The devices are determined for commercial in-dustrial use for plating and chemical industry. The NÜGA Company produces heaters appropriate for most of the chemical solution, degreasing bath, oil bath, water bath etc. inclusive flow heater and air heater. Near thirty years of experience in the field of manufacture and sup-ply of this production range shall guarantee you a high quality supported by authorized certificates, very acce-ptable prices and very short terms of delivery.

Bath heaters - small

These heaters are suitable for montage in the side of bath and are especially designed for small bath.

Available jacket tube material:

• Quartz glass Ø22 and 32 mm
• Technical glass Ø32 mm
• PTFE/Teflon Ø31 mm
• Stainless steel 1.4571 Ø20 and 28 mm
• Stainless steel 1.4539 Ø27 mm
• Titanium Ø28 mm

Available power supply: 230V
Available wattage: 200 - 2000W
Production lenght: 150 - 800 mm

Bath heaters - large

These heaters are suitable for montage in the side of bath and are especially designed for middle and large bath.

Available jacket tube material:

• Quartz glass Ø46 and 51 mm
• Technical glass Ø54 mm
• Porcelain Ø54 mm
• PTFE/Teflon Ø49 mm
• Steel St 34-2 Ø44,5 and 54 mm
• Stainless steel 1.4571 Ø44,5 and 54 mm
• Stainless steel 1.4539 Ø44,5 mm
• Special stainless steel "S" Ø44,5 mm
• Titanium Ø45 mm

Available power supply: 230V, 2x400V, 3x400V
Available wattage: 400 - 8000W
Production lenght: 315 - 3150 mm

Angle bath heaters

These heaters are suitable for montage on the bottom of bath and for bath with low liquid level. Heating elements are placed in the horizontal arms.

Available jacket tube material:

• Technical glass Ø32 mm
• Steel St 34-2 Ø28, 45 and 54 mm
• Stainless steel 1.4571 Ø28, 44,5 and 54 mm
• Stainless steel 1.4539 Ø27 and 44,5 mm
• Special stainless steel "S" Ø44,5 mm
• Titanium Ø28 and 45 mm

Available power supply: 230V, 2x400V, 3x400V
Available wattage: 750 - 18000W
Production lenght (bottom arms): 315 - 3150 mm

High-powered waterproof heaters

These heaters are waterproof and suitable especially for high temperature and for pro-duction places with high concentration of steam.

Available jacket tube material:

• Steel St 34-2 Ø28, 45 and 54 mm
• Steel St 37-2 (seamless) Ø57 mm
• Stainless steel 1.4571 Ø28, 42,4, 44,5 and 54 mm
• Stainless steel 1.4539 Ø27 and 44,5 mm
• Special stainless steel "S" Ø44,5 mm
• Titanium Ø28 and 45 mm

Available power supply: 230V, 2x400V, 3x400V
Available wattage: 1450 - 8000W
Production lenght: 500 - 1600 mm

High-powered hanging registers

These heaters are suitable especially for bath with minimum space for the connecti-on head, suitable for high temperature and for production places with high concen-tration of steam. Advantage: high power on the small mounting area.

Available jacket tube material:

• Steel St 34-2 Ø28, 45 and 58 mm
• Steel St 37-2 (seamless) Ø57 mm
• Stainless steel 1.4571 Ø28, 44,5 and 54 mm
• Stainless steel 1.4539 Ø27 and 44,5 mm
• Special stainless steel "S" Ø44,5 mm
• Titanium Ø28 and 45 mm

Available power supply: 230V, 2x400V, 3x400V
Available wattage: 1500 - 25000W
Production lenght of heated tubes: 240 - 890 mm
Number of heated tubes: 1 - 8

Heating rods

These heating rods are especially suitable for heating in small baths with minimum space for heaters. Heating rods are very variable and might be of any form and any type of construction.

Available jacket tube material:

• PTFE/Teflon Ø13 mm
• Stainless steel 1.4571 Ø10 mm
• Titanium Ø10 mm

Available power supply: 230V, 2x400V, 3x400V
Available wattage: 200 - 12000W
Production lenght: 500 - 13000 mm

Cartridge and round tube screwing heaters

These heaters are suitable for vertical and horizontal montage. The application of these heaters is very wide for example drying kiln, oil bath, baker's furnace, boiling vessel and hot rinsing bat etc.

Available jacket tube material:

• Steel St 34-2 Ø36 - 54 mm
• Stainless steel 1.4571 Ø36 - 54 mm
• Other materials custom-made

Available power supply: 230V, 2x400V, 3x400V
Available wattage: 400 - 18000W
Production lenght: 175 - 2000 mm
Fixation possibilites: according to request (thread, flange etc.)
Diameter of the cartridge heater: 32, 39, 45 and 57 mm

Bath heaters - isolated

These heaters are suitable for montage in the side of bath. Heater has a special isolation with fully working protective earth conductor (PE) inside. These heaters are especially sui-table for electrolytic bath. Protective earth conductor (PE) is not connected with the jacket tube and the galvanic process is not impressed with settling of dirt and encrusting at the surface of the jacket tube.

Available jacket tube material:

• Steel St 34-2 Ø45 and 54 mm
• Stainless steel 1.4571 Ø54 mm
• Special stainless steel "S" Ø44,5 mm
• Titanium Ø45 mm

Available power supply: 230V, 2x400V, 3x400V
Available wattage: 750 - 3150W
Production lenght: 315 - 1000 mm

Special bath heaters and device

Example of some special wares and equipment:

Variety of the products is wide, and it is not possible to mention all the types, but we can mention for example flow heater, air heater and special tank heater. We are able to supply any special heater made of available ma-terials and according to customer's request.

Bath heaters with temperature regulator - inbuilt

These heaters contains a built in analogue tem-perature regulator with adjustment range 10 up to 120°C. Also the angle bath heaters we can supply with this temperature regulator. Heaters with temperature regulator are especially suitable for small bath and bath where should be hold constant temperature.

Available jacket tube material:

• Quartz glass Ø51 mm
• Technical glass Ø54 mm
• Porcelain Ø54 mm
• PTFE/Teflon Ø49 mm
• Steel St 34-2 Ø42 and 45 mm
• Stainless steel 1.4571 Ø40 and 44,5 mm
• Stainless steel 1.4539 Ø44,5 mm
• Special stainless steel "S" Ø44,5 mm
• Titanium Ø45 mm

Available power supply: 230V
Available wattage: 630 - 3500W
Production lenght: 315 - 1000 mm

Temperature regulators and limiters

Common analogue or digital temperature regula-tors and limiters are suitable for direct connection to heater. Digital temperature regulators and li-miters can be switch between Nominal tempera-ture regulator (Indication of the required regula-ting temperature) and indication of the actual temperature, "thermometer".

Available jacket tube material:

Fixation possibilites: according to request
                                 (thread, flange etc.)
Rigid lenght: 310, 510 and 810 mm
Flexible lenght: 150, 300, 800, 1000, 1500 mm

Dry heat protection level electrodes, temperature and combined sensors

Level electrodes work on conduction or float ba-sis. In conjunction with appropriate electronic can be heater, pumps, mixer appliances, etc pro-tected against dry run respectively the level can be regulated conductively. Temperature sensors protect heaters and bath against excess of the required regulating temperature. Combined sen-sors contain temperature sensor together with level electrodes.

Available jacket tube material:

Level electrodes length: 30 - 5000 mm
Number of level electrodes: 1 - 5
Temperature sensors length: 30 - 5000 mm
Temperature limit: 0 - 200°C

Analogue and digital switch box

These electronic devices in connection with temperature sensors/level electrodes can temperature-regulate and temperature limits heated bath as well as immersion bath heaters, pumps etc. can be protected against fire and dry-run.

Example of some special switch box:

Regulation switch box 2 in 1: heating + temperature control
Regulation switch box 4 in 1: heating + temperature control + temperature limiter + dry heat protection

Regulation switch boxes are very variable and variety of the products is wide, and that's why we can make an offer of appropriate solution for your technological and production unit according to customer's requirements.

For all devices we can supply all replacement parts and in the case of failure we offer full customer service.

Standard devices we can supply till one week, device along customer's requirements till 2 weeks and in the ca-se of failure (average) we supply till 72 hours.
